📡Mercusys MWR: An Analysis of the N300 Fast Ethernet Router

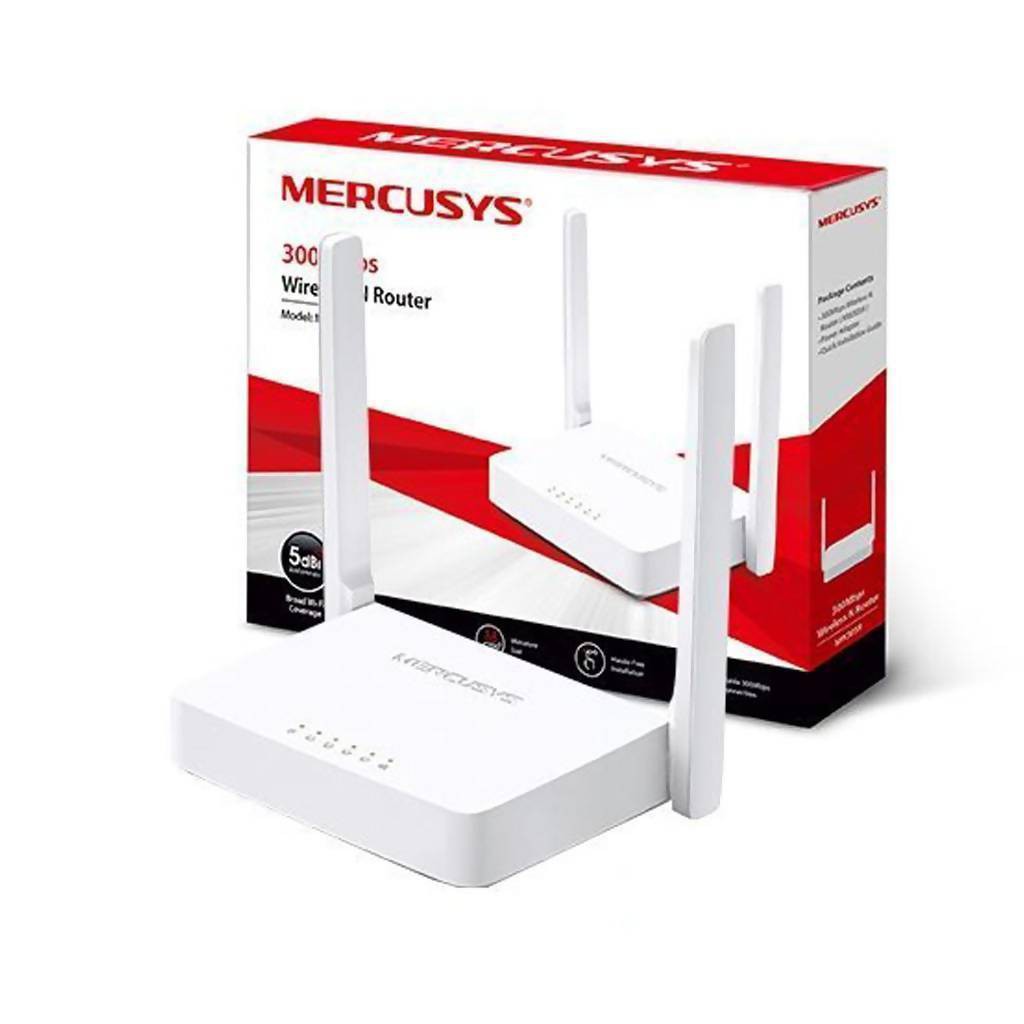

The Mercusys MW301R is a 300 Mbps Wireless N Router designed as a cost-effective solution for basic, low-to-moderate demand home networking. Its technical specifications—particularly its reliance on the older IEEE 802.11n standard and Fast Ethernet ports—position it specifically for internet connections below 100Mbps and environments where only the 2.4 GHz band is required.
I. Wireless Specification: The N300 Standard
The MW301R is classified as an N300 device, operating exclusively on the 2.4 GHz frequency band.
Standard Limitation (802.11n): This standard provides a theoretical maximum wireless throughput of 300 Mbps. However, in real-world environments, interference from other household devices (microwaves, Bluetooth, etc.) and wall attenuation typically limit the stable, sustained speed to significantly less than 100 Mbps.
Propagation and Range: The 2.4GHz band offers superior range and wall penetration compared to the 5 GHz band used in AC or AX routers. This makes the MW301R effective for covering larger, single-floor residences where high speed is not the priority.
Antenna Design: The router utilizes two 5 dBi fixed omni-directional antennas.The higher the dBi gain, the more focused the signal, which aids in boosting the signal sensitivity for better coverage across the home.
II. The Wired Bottleneck: Fast Ethernet Ports
A crucial architectural consideration for the $\text{MW}301\text{R}$ is the specification of its wired interfaces:
Ports: It features 1xWAN port and 2xLAN ports, all limited to 10/100Mbps (Fast Ethernet).
Performance Limit: This specification imposes a non-negotiable wired bottleneck of 100 Mbps on the entire network. If the user has an internet subscription faster than 100 Mbps (e.g., 200Mbps fiber optic), the router's hardware will cap the usable speed at the 100 Mbps WAN port limit.
Application: This design makes the MW301R perfectly suited for internet connections that are 100 Mbps or less, where upgrading to a more expensive Gigabit (1000
III. Multi-Mode Operational Architecture
The MW301Rs firmware supports multiple networking roles, enhancing its utility beyond a basic home router:
The flexibility of these modes allows the MW301R to be repurposed as the network expands or requirements change, maximizing its long-term value.
WHAT IS BANDWIDTH MANAGEMENT?
🚦 Network QoS and Traffic Engineering: The Science of Bandwidth Management
Bandwidth Management is a discipline of network engineering that utilizes advanced protocols and algorithms to control, prioritize, and allocate network capacity (bandwidth) dynamically. Its objective is to move beyond simple speed limits and ensure a quantifiable Quality of Service (QoS) for latency-sensitive applications over a finite, shared network resource.
I. Architectural Framework and Protocols
Bandwidth management techniques primarily operate at the OSI Layer 3 (Network) and Layer 4 (Transport) to classify and prioritize data flows.
1. The Role of QoS Protocols
QoS is the mechanism used to differentiate traffic. This is typically achieved by marking packets as they enter the network:
DiffServ (Differentiated Services): This is the most common modern QoS framework. It uses the 6-bit DSCP (Differentiated Services Code Point) field within the IP header (Layer 3) to assign a traffic class. For instance, voice traffic might be marked as EF (Expedited Forwarding), guaranteeing minimal delay and jitter, while standard browsing might be marked as BE (Best Effort).
CoS (Class of Service): Used within Layer 2 protocols (like Ethernet) to classify traffic on local area networks (LANs) or within a provider's controlled network segment.
2. Congestion Management (Queuing)
When a router's buffer is full, it must decide which packets to drop or prioritize. This is handled by queuing algorithms:
FIFO (First-In, First-Out): The simplest queue; no prioritization. Drops packets arbitrarily when full, leading to increased latency for critical data.
WFQ (Weighted text{Fair Queuing): Assigns a specific "weight" to different traffic flows (DSCP markings). Higher-weight traffic is serviced proportionally more often, providing the foundation for guaranteed minimum bandwidth.
CBWFQ (Class-Based Weighted Fair Queuing): The most advanced technique, allowing administrators to define specific classes (e.g., "Voice," "Guest WiFi", "ERP") and reserve a specific minimum bandwidth percentage for each class.
II. Traffic Shaping and Policing Algorithms
Traffic Shaping and Traffic Policing are the two primary control mechanisms used to enforce bandwidth limits and smooth data flow.
Shaping is typically used on outbound traffic to prevent bottlenecks, while Policing is used on inbound traffic to protect the network from users that exceed their limits.
III. Key QoS Metrics for User Experience
Effective bandwidth management requires monitoring the metrics that directly impact the user experience, particularly for real-time applications:
Latency (Delay): The time required for a packet to travel from source to destination. For VoIP and gaming, acceptable latency must be below 100milliseconds.
Jitter: The variation in packet delay. High jitter causes audio/video to sound broken or "choppy." QoS systems use buffers to smooth out jitter.
Packet Loss: The percentage of packets that fail to reach their destination. High packet loss requires retransmission, which severely degrades performance. QoS prioritizes critical traffic to maintain packet loss near 0%.
Effective bandwidth management is the continuous optimization of these metrics across all traffic classes, ensuring that mission-critical data consistently receives the resources necessary for optimal performance.
